Crushing Solutions – From Quarry to Mining to Urban Recycling

A crushing solution is a complete material-processing system designed around raw material characteristics, required capacity, final product sizes, and site conditions. The right solution may include a jaw crusher, cone crusher, impact crusher, vibrating screen, feeder, conveyor, VSI, or washing equipment depending on the project requirements.

What Do I Need for My Crushing Project?

A crushing project starts with the material you need to process, the products you need to produce, and the production target you need to achieve. Instead of selecting a crusher first, define these project requirements before determining the complete crushing solution.

The key information normally includes the raw material, maximum feed size, required capacity, final product sizes, application, project location, available space, and expected operating conditions. These factors determine the crushing process, equipment configuration, and plant layout.

Which Crushing Solution Fits My Project?

Once you have clearly defined your project requirements, you can begin selecting a crushing solution. The key to this selection process is to comprehensively consider the material, production capacity goals, finished product specifications, and on-site operating conditions—rather than simply choosing a specific equipment model.

What Does the Crushing Solution Look Like?

A complete crushing solution is more than a single crusher. It is a connected processing system in which feeding, crushing, screening, conveying, and optional processing stages work together to produce the required final materials.

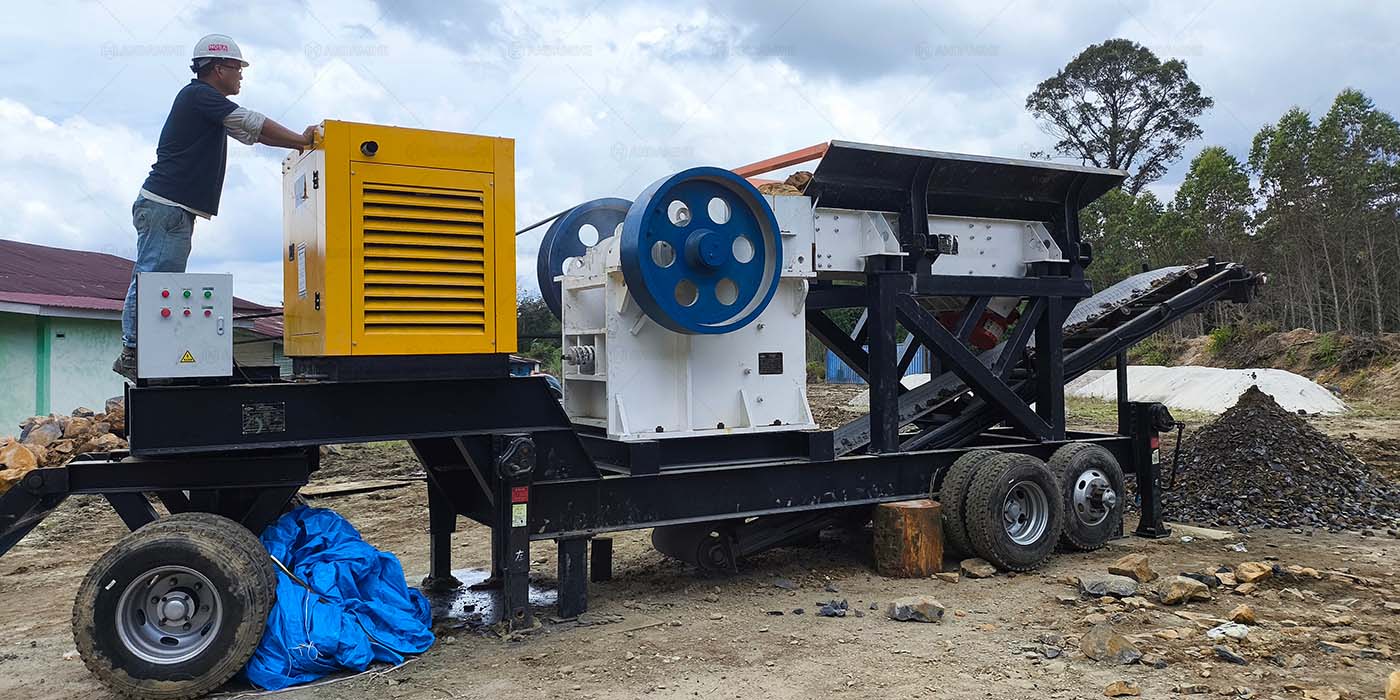

Not every project requires every stage. A small road-base project may use feeding, jaw crushing, and conveying, while a high-capacity aggregate plant may require primary crushing, secondary crushing, screening, closed-circuit circulation, and multiple conveyors.

Typical Equipment in a Crushing Solution

• Vibrating feeder: Controls the material flow into the primary crusher.
• Jaw crusher: Commonly used for primary crushing of large and hard feed materials.
• Impact crusher: Suitable for applications where impact crushing and particle shaping are required.
• Cone crusher: Commonly used for secondary or tertiary crushing of hard and abrasive materials.
• Vibrating screen: Separates crushed material according to the required particle sizes.
• VSI sand-making machine: Can be added when fine aggregates or manufactured sand are required.
• Belt conveyor: Transfers material between processing stages and to finished-product stockpiles.
• Washing equipment: Can be included when the project requires additional cleaning of the final material.

How Is the Crushing Solution Designed?

The crushing solution is designed from the project requirements instead of starting with a fixed equipment list. ANDAMINE considers the material, capacity, product specifications, site conditions, and operating requirements before developing the equipment configuration and plant layout.

Has the Crushing Solution Worked on Real Projects?

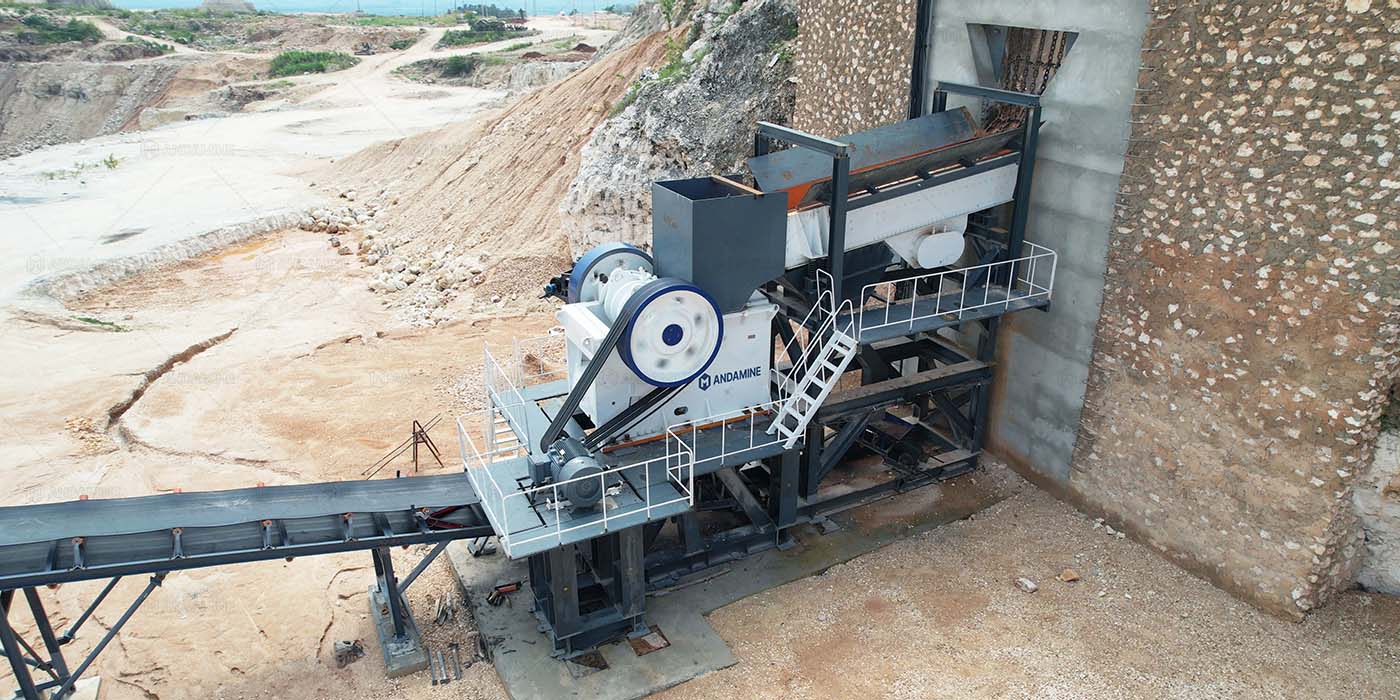

Looking for crushing equipment solutions that really work on Indonesian sites? Andamine doesn’t just supply machines—we deliver complete, tested systems that perform in real conditions. From quarries in West Java to nickel mines in Sulawesi and limestone operations in Sumatra, our screening and crushing solutions are proven to handle local rocks, terrain, and project demands efficiently and reliably.

Seeing our crusher equipment solutions perform across Java, Sulawesi, and Sumatra shows they work in real Indonesian conditions. But don’t just take our word for it—let’s explore why thousands of Indonesian clients choose ANDAMINE for their crushing projects.

How to Choose a Crushing Solution

This document describes how to choose crushing solutions by assessing raw material features, finished aggregate requirements, production capacity, site environment, crushing stages and total operation & investment cost. It provides corresponding crushing plant configurations for hard rock, manufactured sand and construction waste recycling projects, covering stationary and mobile crushing systems.

Project Requirement	Key Factors to Consider	Typical Solution Direction
Small production	Capacity, investment, site size	Compact or mobile crushing plant
Long-term quarry	Stable production, layout, future expansion	Stationary crushing plant
Multiple working sites	Mobility, relocation, setup requirements	Mobile crushing plant
Hard rock	Hardness, abrasiveness, feed size	Jaw + cone crushing
Manufactured sand	Fine output, particle shape, grading	Multi-stage crushing + VSI where required
Multiple aggregate sizes	Product grading and screening requirements	Crushing + screening

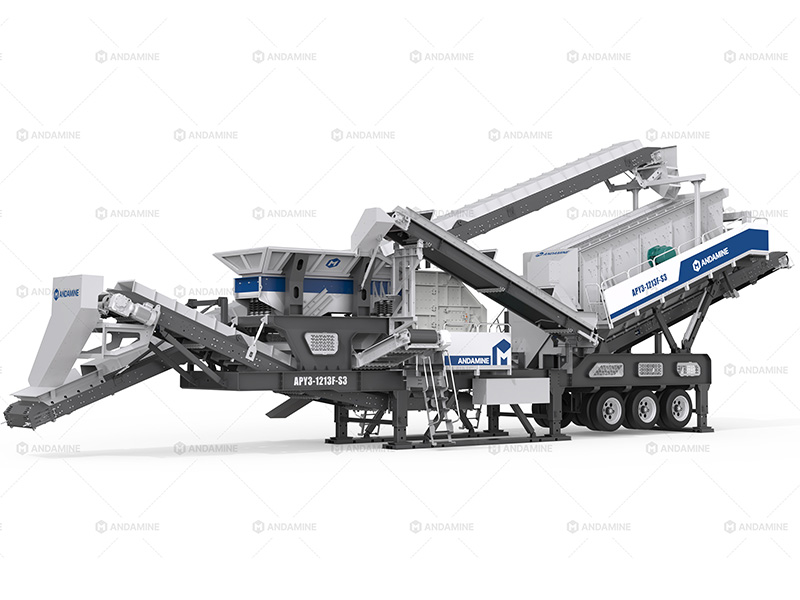

Construction waste recycling	Material type, impurities, mobility	Mobile impact crushing + screening

1. Start With the Raw Material

Different materials behave differently during crushing. Hardness, abrasiveness, moisture, clay content, and feed size can affect crusher selection, crushing stages, and wear-part requirements.

• Hard and abrasive rock: A jaw crusher is commonly used for primary crushing, followed by cone crushing when further size reduction is required.
• Moist or clay-containing material: Feeding and screening requirements should be considered to prevent material from affecting the crushing process.
• Large feed material: The primary crusher should be selected according to the maximum feed size and required production capacity.
• Construction waste: The solution should account for concrete, brick, asphalt, and other mixed materials that may require different processing approaches.

2. Define the Required Finished Products

The final aggregate specifications determine the required crushing and screening process. Before selecting equipment, define the target product sizes and their intended applications.

• Coarse aggregate: A simpler crushing and screening process may be sufficient.
• Multiple aggregate sizes: Additional screening and controlled material circulation may be required.
• Manufactured sand: Fine crushing or a VSI sand-making stage may be added when the required product specifications call for it.
• Fine ore: Multiple crushing stages may be required before the material enters beneficiation or other downstream processing.

3. Calculate the Required Capacity

Capacity should be based on the project’s actual production target rather than the crusher’s maximum rated capacity. Consider the required daily output, effective operating hours, material availability, and expected feed conditions.

The final equipment configuration should also allow enough capacity for normal variations in feed conditions without creating unnecessary equipment or operating costs.

4. Consider Site Conditions

Site conditions can determine whether a mobile, portable, or stationary crushing solution is more practical. Consider the available land, terrain, access roads, power supply, water availability, and expected project duration.

• Long-term quarry production: A stationary crushing plant can provide a stable production layout and allow future expansion.
• Multiple working locations: A mobile crushing plant can reduce the need to transport raw material between sites.
• Remote projects: Mobile or diesel-powered solutions can be considered where infrastructure is limited.
• Limited site space: Equipment arrangement and material flow should be planned around the available working area.

5. Determine the Required Crushing Stages

The number of crushing stages depends mainly on the feed material, feed size, required reduction ratio, and final product specifications.

Not every project requires every stage. A small road-base project may use a primary jaw crusher and screening, while a multi-product aggregate project may require jaw crushing, cone crushing, screening, and closed-circuit circulation.

6. Compare Investment and Operating Requirements

A crushing solution should be evaluated according to its complete operating requirements rather than equipment purchase price alone. Consider the initial investment, energy or fuel consumption, wear parts, maintenance, transportation, labor, and potential future expansion.

How We Build a Crushing Solution

A crushing solution is developed from project requirements rather than selected from a single standard equipment list. We first define the material and production requirements, then develop the crushing process, equipment configuration, and plant layout around the actual site conditions.

Step 1 — Confirm Project Requirements

We collect the basic information needed to define the project, including:

• Raw material type
• Maximum feed size
• Required production capacity
• Final product sizes
• Intended application
• Expected operating hours
• Project location and site conditions

Step 2 — Analyze the Material

Material characteristics affect the crushing process and equipment selection. The analysis may consider:

• Material hardness
• Abrasiveness
• Moisture content
• Clay or sticky material content
• Maximum feed size
• Required reduction ratio

Step 3 — Define the Crushing Process

Based on the material and product requirements, the crushing flow is determined. A typical process may include:

Feeding → Primary Crushing → Secondary Crushing → Screening → Final Products

Additional crushing, sand making, washing, or closed-circuit circulation can be included when the final product requirements call for them.

Step 4 — Select the Equipment

Equipment is selected according to the required process rather than as independent machines. Depending on the project, the solution may include:

• Jaw crusher
• Cone crusher
• Impact crusher
• VSI sand-making machine
• Vibrating feeder
• Vibrating screen
• Belt conveyor
• Washing equipment where required

Step 5 — Design the Plant Layout

The equipment arrangement is planned around material flow, available land, site access, stockpile positions, maintenance space, and transportation conditions.

• Material feeding and transfer routes
• Crusher and screen arrangement
• Conveyor positions and discharge points
• Finished-product stockpiles
• Maintenance and operator access
• Site terrain and available working area

Step 6 — Verify the Production Requirements

The proposed solution is checked against the project’s production and product requirements. The review should cover capacity, feed size, output grading, equipment matching, power requirements, and expected operating conditions.

Step 7 — Manufacture, Install & Commission

After the solution is confirmed, the equipment is manufactured and prepared for delivery. Installation and commissioning then bring the complete crushing system into operation.

• Equipment manufacturing
• Factory inspection and testing
• Transportation and site delivery
• Installation and connection
• Trial operation and commissioning
• Operator guidance and after-sales support

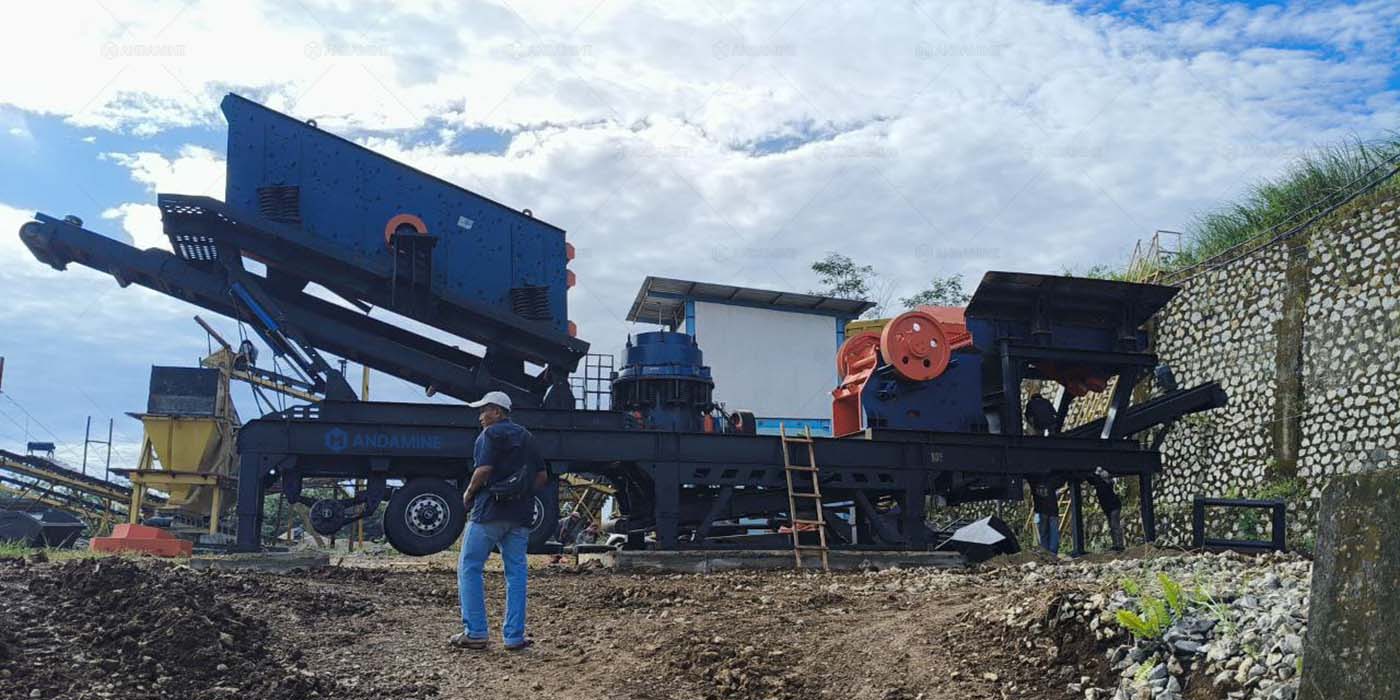

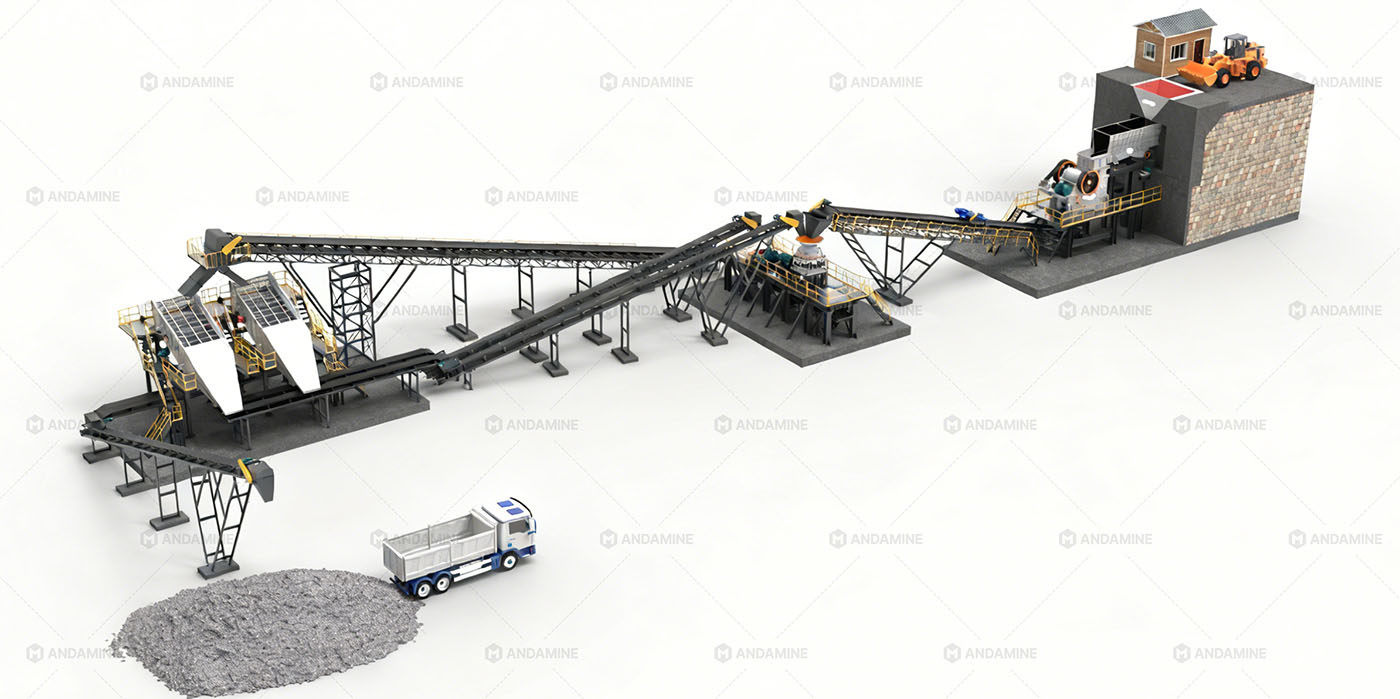

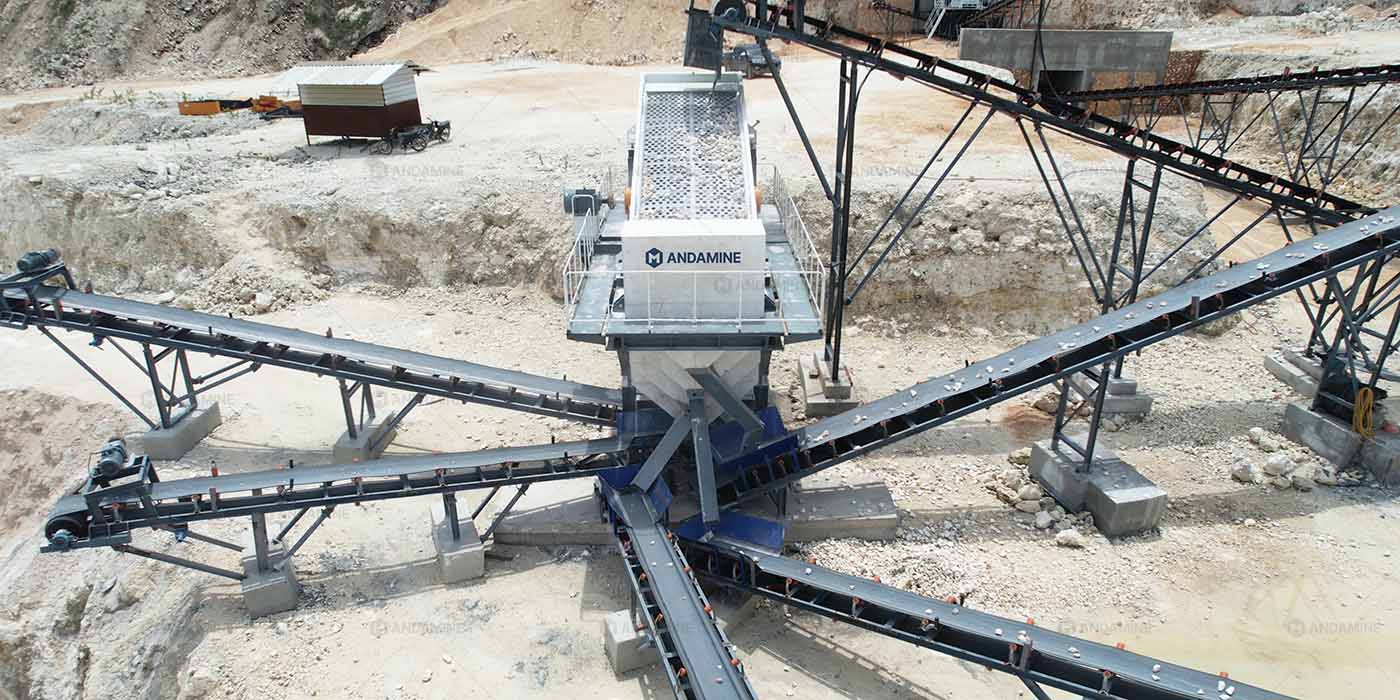

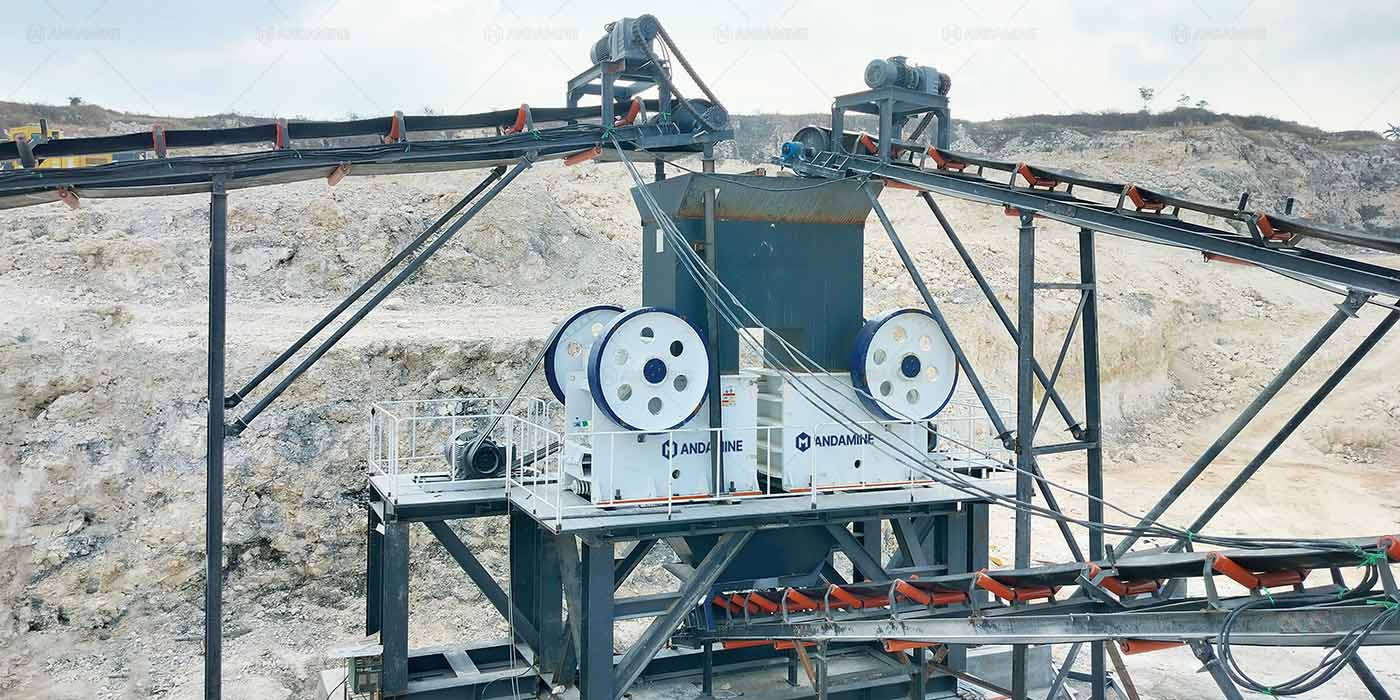

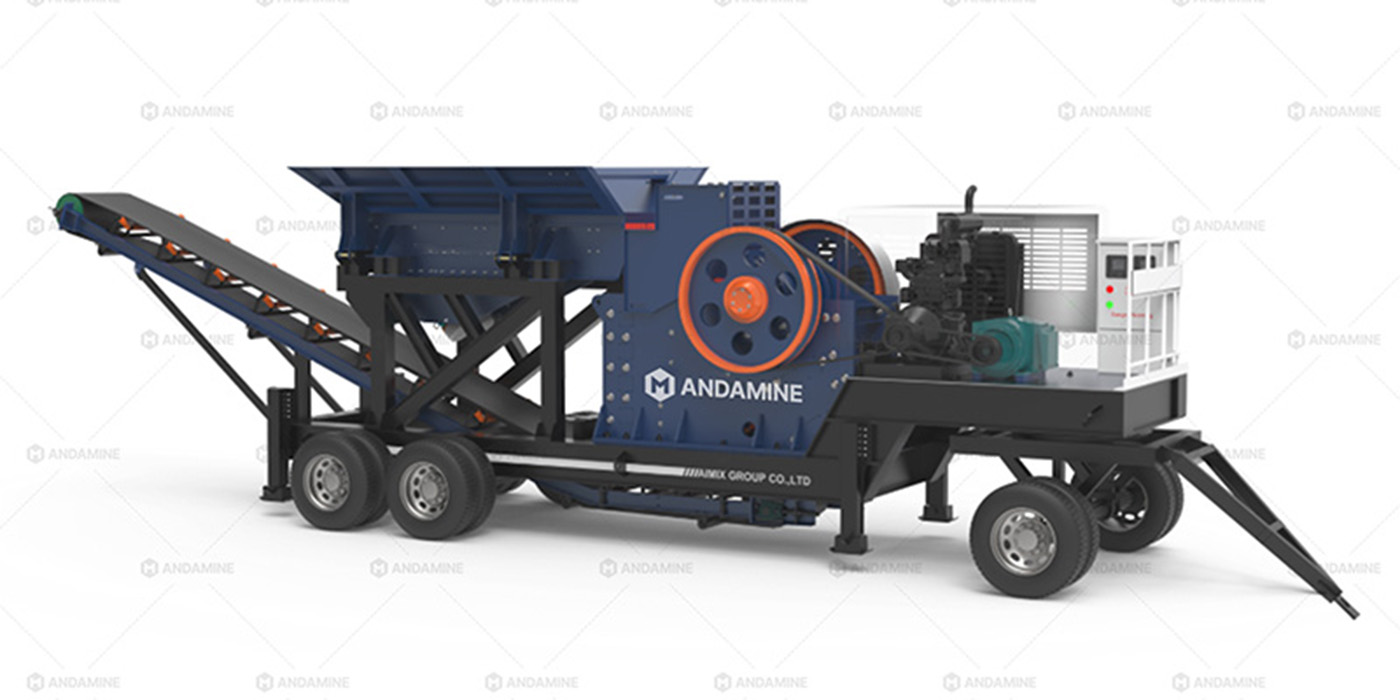

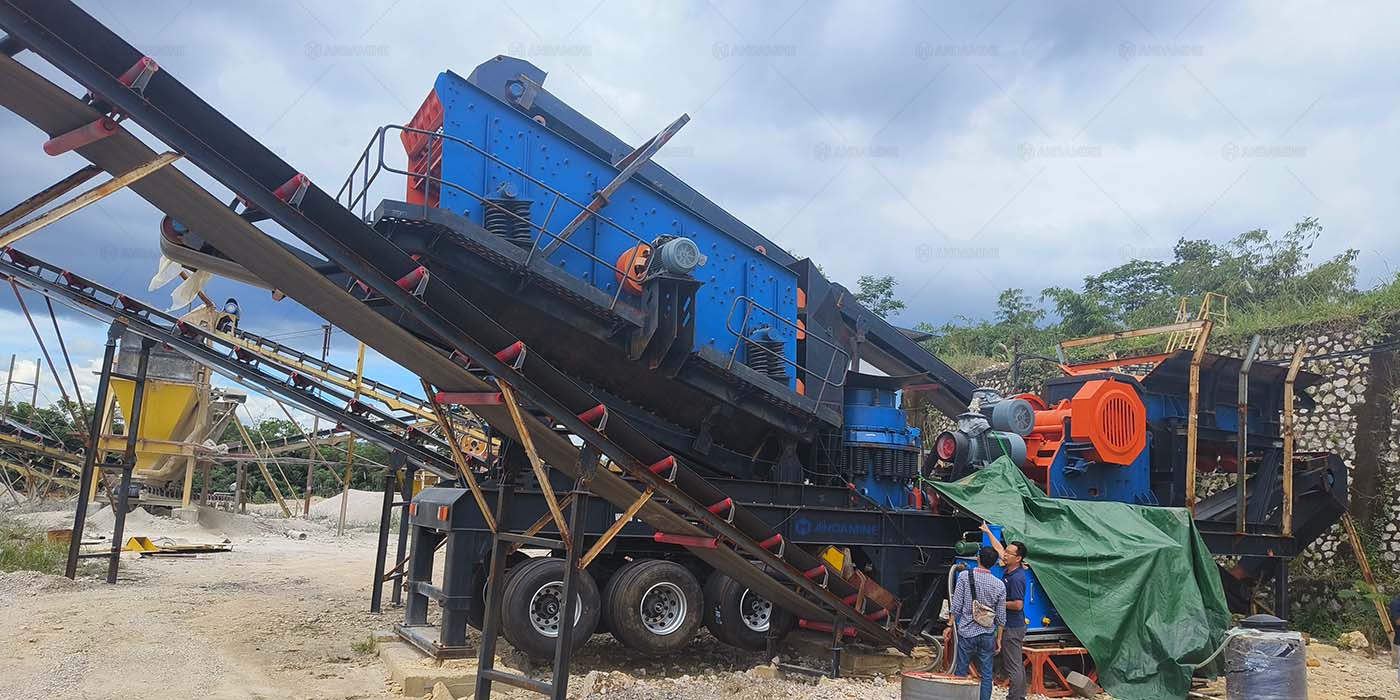

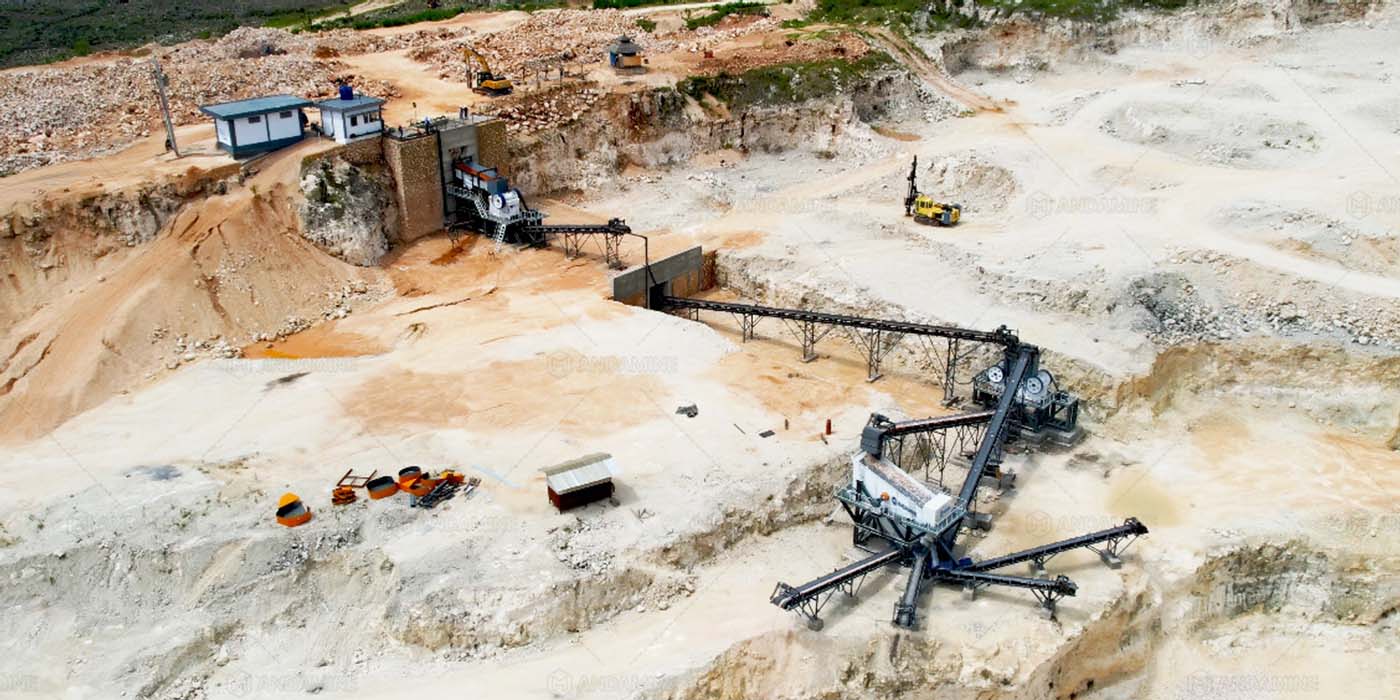

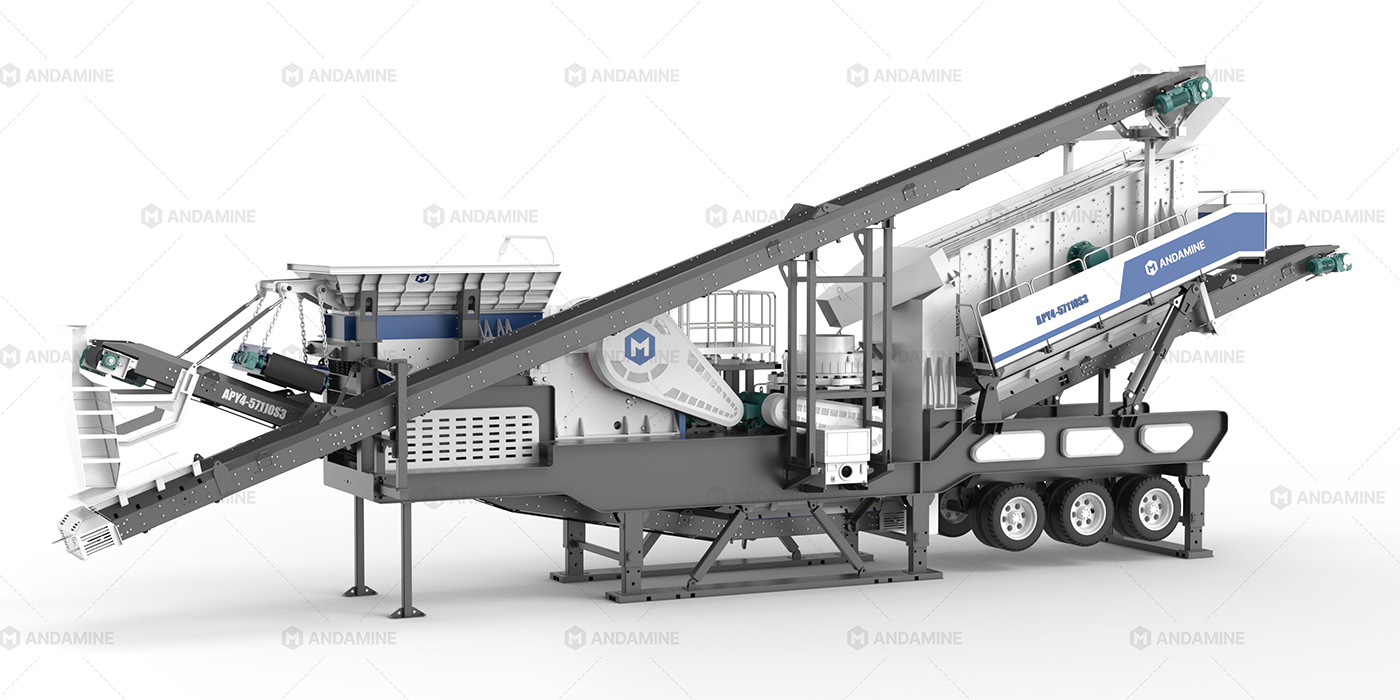

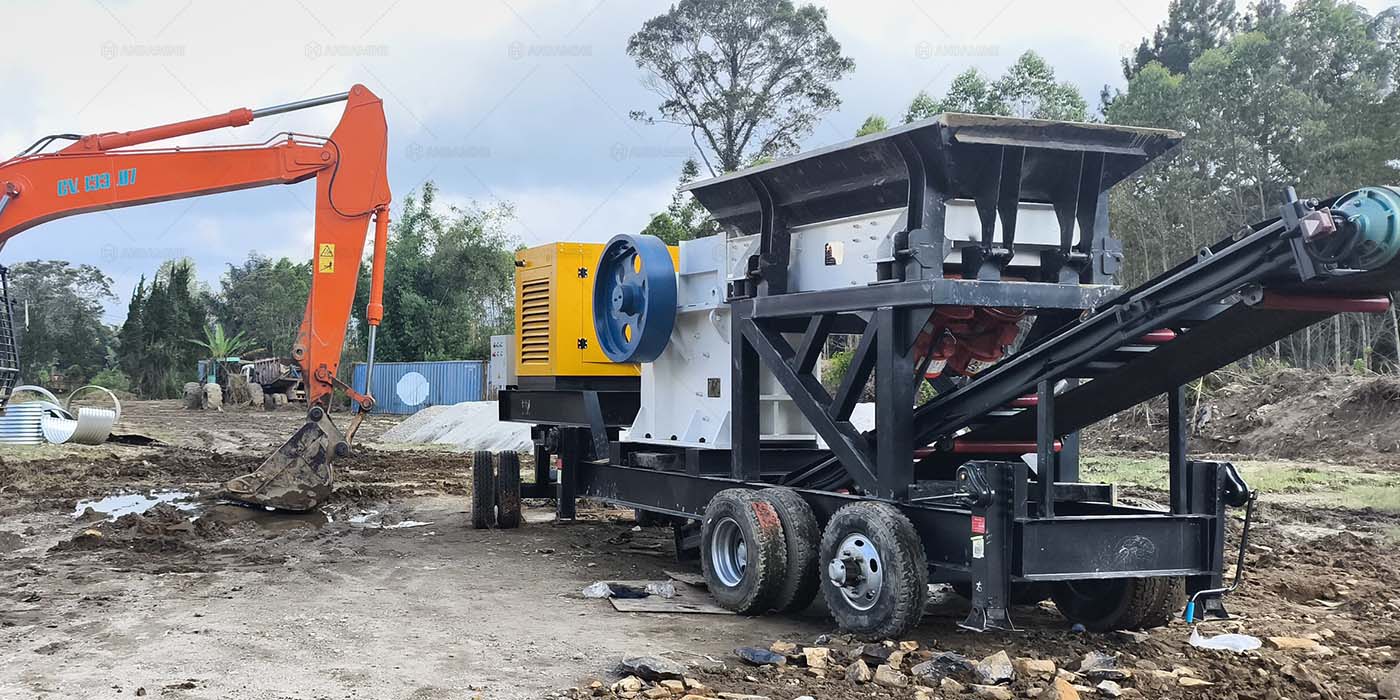

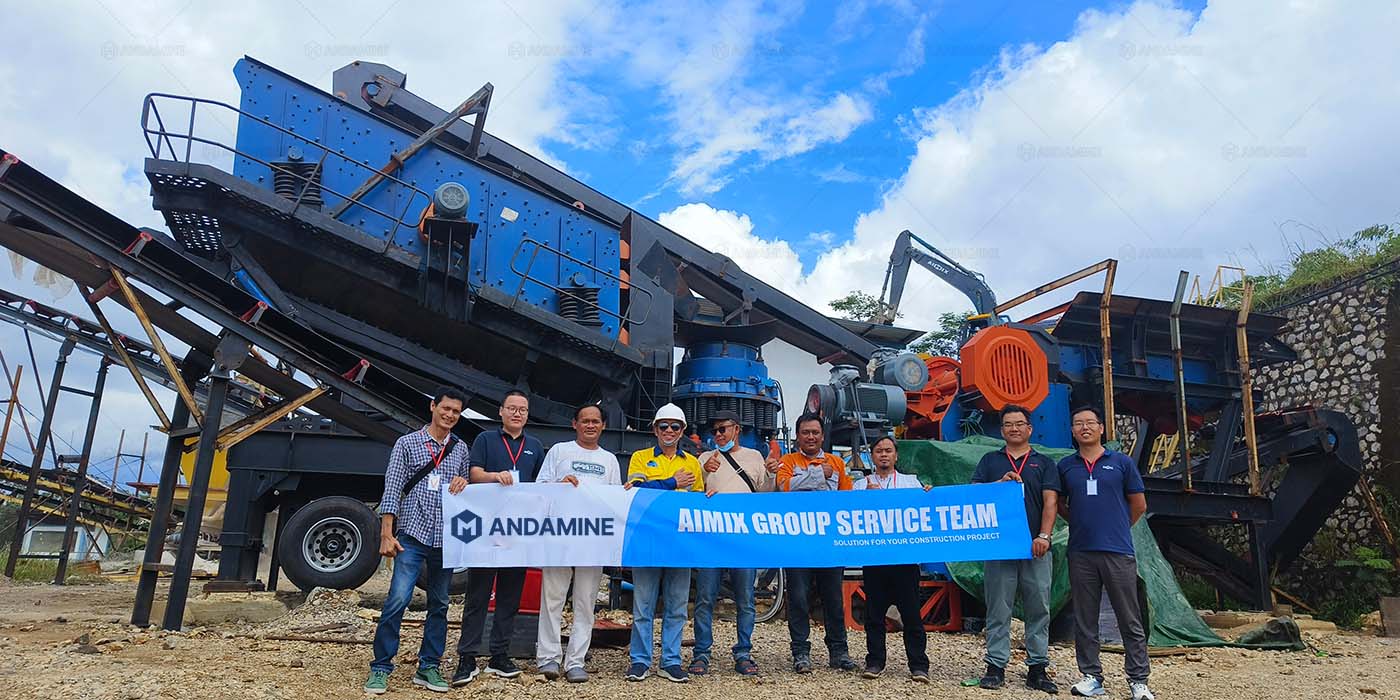

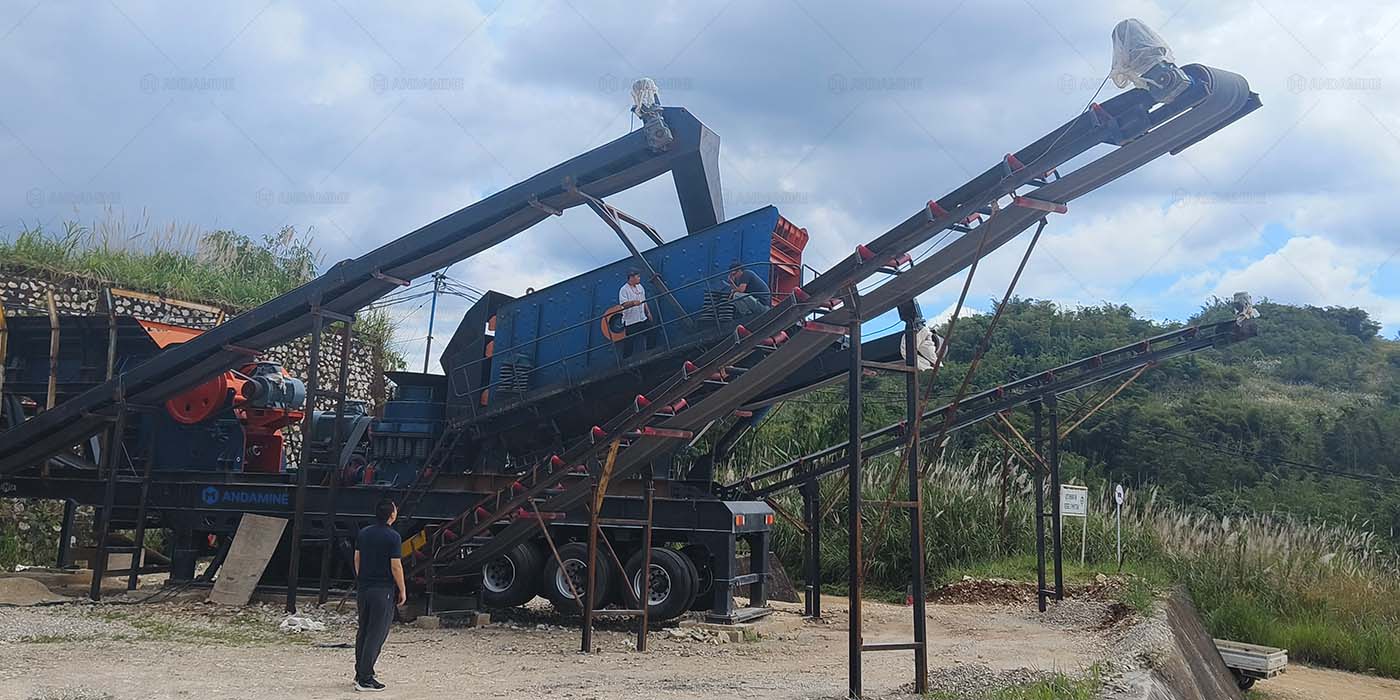

Here Are The Crushing Solutions We Prepared For Our Client For Your Reference

Ready to Start Your Crushing Project in Indonesia?

Whether you’re running a quarry, mining operation, or urban recycling project, Andamine delivers customized crushing solutions built for real Indonesian conditions. From site survey and material testing to installation, commissioning, and local after-sales support, we handle every step of the process—so you can focus on production and profits. Don’t wait—get in touch today to see how Andamine can design the right crushing system for your project and keep it running smoothly for years to come.
