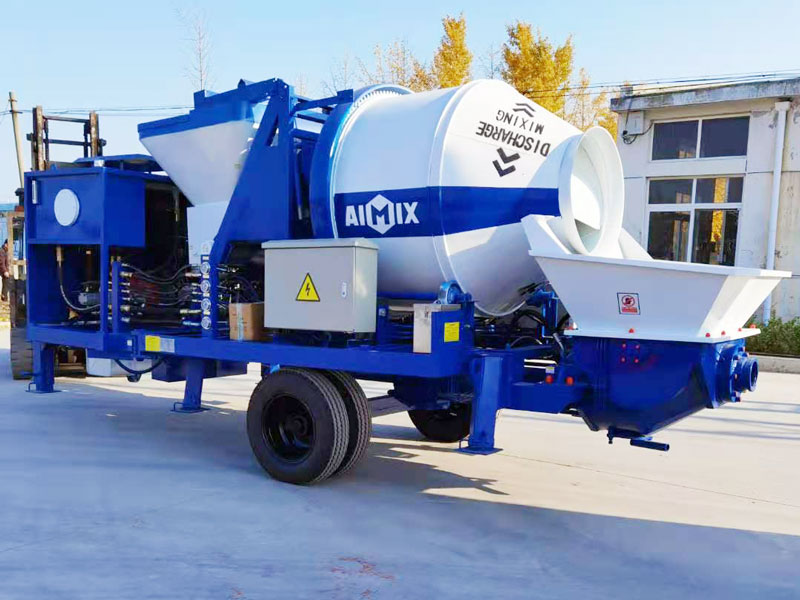

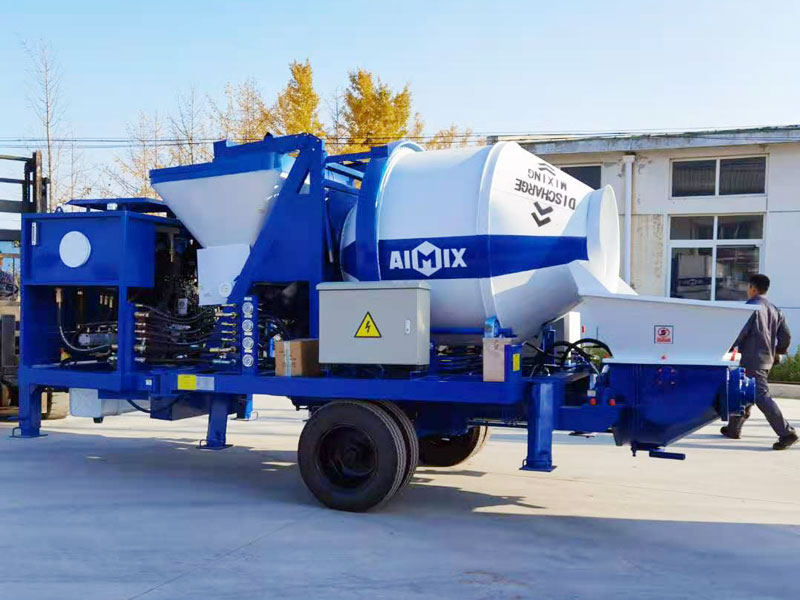

Good news comes again in November 2020! One set AIMIX ABJZ40C diesel concrete mixer pump was loaded and sent to the Philippines. The following are some pictures taken on the loading site.
AIMIX ABJZ40C concrete mixer pump is a very hot type among our concrete pumping equipment. Many of our customers choose this type.
As a piece of equipment that combines the function of concrete mixing and pouring, the concrete mixer pump is a clever design and wins customer’s favor. It is very convenient to use a concrete mixer pump for on-site concrete mixing and pouring.
| Model | ABJZ40C-10-82R |
|---|---|
| Price Range | $20,000-$40,000 |
| Max. theo. concrete output | 40m3/h |
| Max. concrete pumping pressure(H./L.) | 10Mpa |
| Distribution Valve Type | S |
| Concrete Cylinder Diameter×Stroke | Φ180/1000mm |
| Hopper Capacity×Feeding Height | 400×1200(L×mm) |
| Outlet Diameter | Φ150mm |
| Electrical Engineering Power | 82KW |
| Rotate Speed | 2200r/min |
| Circuit Type | Open Circuit |
| Pumping System Pressure | 32Mpa |
| Mixing System Pressure | 10Mpa |
| Max Mixing Spped | 20r/min |
| Capacity of Oil Tank | 350L |
| The biggest transportation is away from vertically(/Level) | 150m/600m |
| Max. Aggregate Diameter | Φ125mm |
| Dimensions: length×width×height | 6000mm×2350mm×3150mm |
| Total Weight | 6000Kg |
With a diesel engine, this ABJZ40C diesel concrete mixer pump is even more popular. Since it can work without the limit of electricity supply. It can be applied to much wider area than electric mixer pumps.
Aimix mainly provides ABJZ30C, ABJZ40C diesel concrete mixer pumps for customers to choose. Besides diesel concrete mixer pumps, our diesel concrete trailer pump is also very popular. Our diesel concrete pumps have a special discount now, you can see the detailed promotion information in the following pictures.
If you are interested in any type of our concrete mixer pumps and concrete trailer pumps, welcome to contact us now! Leave your message in the form below, we will reply in 24 hours!
