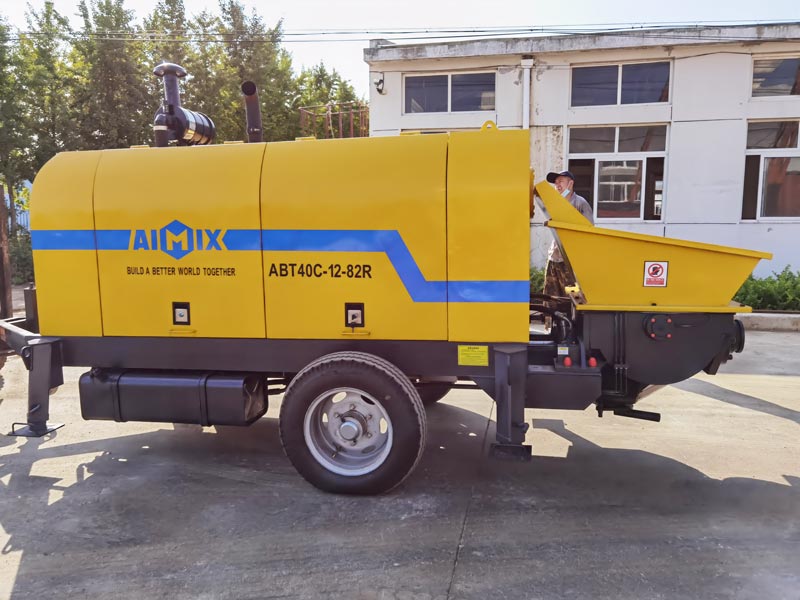

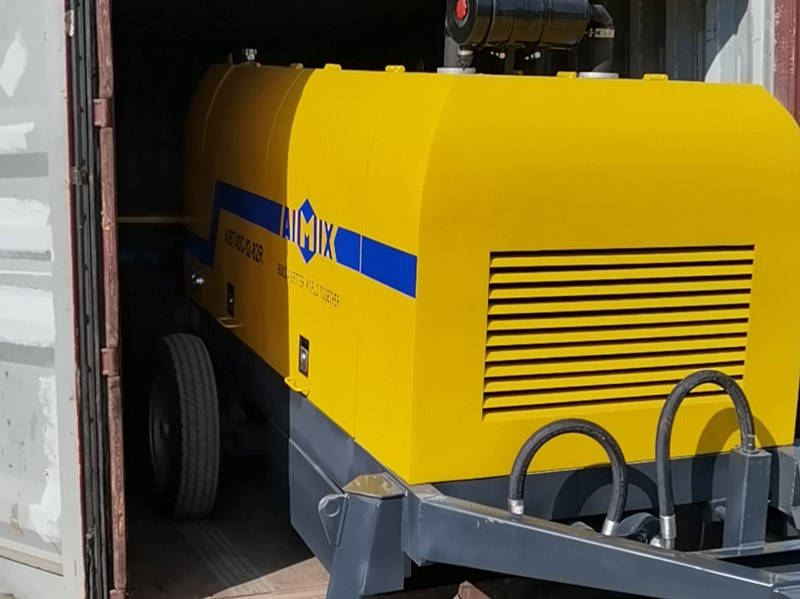

Good news! One set AIMIX ABT40C diesel concrete pump was loaded and sent to the Philippines in September 2020. The following are some pictures taken on the loading site.
Diesel concrete pump is a powerful concrete pouring equipment, which is especially suitable for high-level concrete pumping with strong pumping power and compact structure.
30m3/h and 40m3/h are the hot models of our diesel engine concrete trailer pump, which all adopt advanced S valves and double pump, double-circuit open hydraulic system, and it greatly improves the pumping performance of diesel concrete pump.
| Items | Units | ABT40C |
|---|---|---|
| Max. theo. concrete output(H./L.) | m3/h | 26/40 |
| Max. concrete pumping pressure(H./L.) | Mpa | 10/8 |
| Distribution valve type | S | |
| Concrete cylinder diameter×stroke | mm | Φ180/1300 |
| Hopper capactiy × feeding height | L×mm | 400×1250 |
| Outlet diameter | mm | Φ150 |
| Diesel engine model | Weichai | |
| Electrical engineering power | KW | 82 |
| Rotate speed | r/min | 2200 |
| Circuit type | Open circuit | |
| Pumping system pressure | Mpa | 32 |
| Mixing system pressure | Mpa | 10 |
| Max mixing speed | r/min | 25 |
| Capacity of oil tank | L | 370 |
| The biggest transportation is away from vertically(/Level) | m | 120/500 |
| Max. aggregate diameter | mm | Scree:40 |
| Inside diameter of delivering pipe | mm | Φ125 |
| Dimensions: length×width×height | mm | 4500×1850×1700 |
| Total weight | kg | 4500 |
Diesel concrete pump has much wider application than electric concrete pumps because it doesn’t need electricity supply. It can be applied to areas without or not sufficient electricity supply. Every year, we sell more diesel concrete pumps than electric concrete pumps. A large number of customers choose to buy a diesel engine concrete pump instead of an electric concrete pump.
As an experienced construction machinery manufacturer and exporter, AIMIX has exported our concrete pumps to many countries all over the world. Besides diesel concrete pumps, we also provide 30 and 40 cubic meters diesel concrete mixer pumps, which is even more convenient to use for customers. If you are interested in any type of them, welcome to contact us now!
