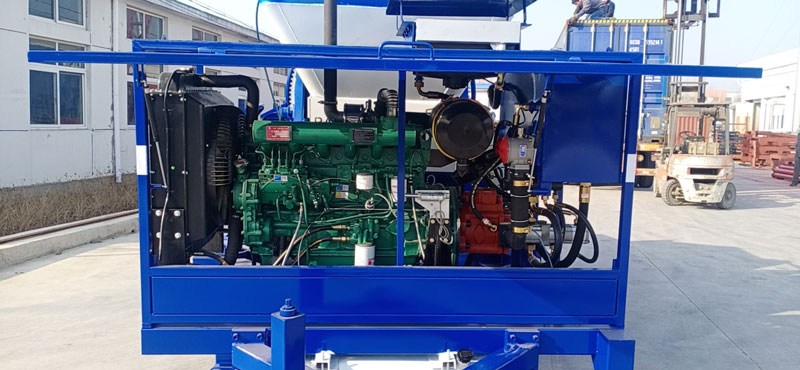

Good news comes in March 2021! one set AIMIX ABJZ40C diesel concrete mixer pump was loaded and sent to Indonesia. It will soon arrive in Indonesia and make a contribution to our customer’s construction project. The following are some pictures and video took on the loading site.
ABJZ40C diesel concrete mixer pump is a very hot type among our concrete mixer pumps. We sell many of them every year. With diesel engine, it can be applied to much wider areas than electric ones. 40m3 capacity concrete mixer pumps are very popular among our customers.
| Model | ABJZ40C-10-82R |
|---|---|
| Price Range | $20,000-$40,000 |
| Max. theo. concrete output | 40m3/h |
| Max. concrete pumping pressure(H./L.) | 10Mpa |
| Distribution Valve Type | S |
| Concrete Cylinder Diameter×Stroke | Φ180/1000mm |
| Hopper Capacity×Feeding Height | 400×1200(L×mm) |
| Outlet Diameter | Φ150mm |
| Electrical Engineering Power | 82KW |
| Rotate Speed | 2200r/min |
| Circuit Type | Open Circuit |
| Pumping System Pressure | 32Mpa |
| Mixing System Pressure | 10Mpa |
| Max Mixing Spped | 20r/min |
| Capacity of Oil Tank | 350L |
| The biggest transportation is away from vertically(/Level) | 150m/600m |
| Max. Aggregate Diameter | Φ125mm |
| Dimensions: length×width×height | 6000mm×2350mm×3150mm |
| Total Weight | 6000Kg |
This is the loading video of AIMIX ABJZ40C diesel concrete mixer pump sent to Indonesia recently.
With the function of on-site concrete mixing and pouring, the concrete pump is a very convenient machine for the construction industry. It got customer’s favor since it is launched into the market.
AIMIX mainly provides ABJZ30C and ABJZ40C diesel concrete mixer pumps for customers to choose. The mixer adopted in the mixer pump can be JZC350 concrete mixer or JS500 concrete mixer. Customers can choose either type according to the real demand. If you have special demand, we can provide customized product. Interested in our diesel concrete mixer pumps? Welcome to contact us now! Leave your message in the form below, we will reply in 24 hours!
