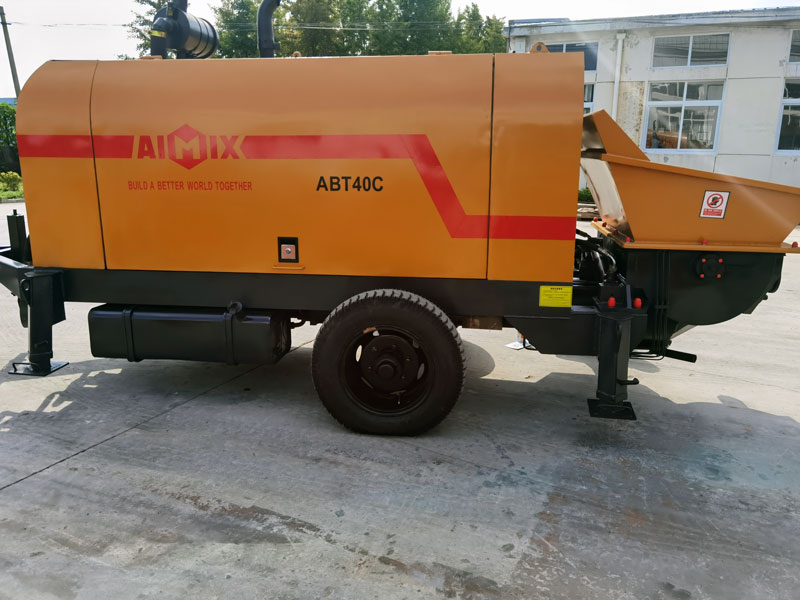

Good news comes in September 2021! one set AIMIX ABT40C diesel concrete pump was ready and sent to Indonesia. The following are some pictures taken before the concrete pump was loaded.
ABT40C diesel concrete pump is a very hot type among our concrete pump products. Many of our customers choose this type. With a diesel engine, it can be applied to many construction sites without the restriction of electricity supply.
| Items | Units | ABT40C |
|---|---|---|
| Max. theo. concrete output(H./L.) | m3/h | 26/40 |
| Max. concrete pumping pressure(H./L.) | Mpa | 10/8 |
| Distribution valve type | S | |
| Concrete cylinder diameter×stroke | mm | Φ180/1300 |
| Hopper capactiy × feeding height | L×mm | 400×1250 |
| Outlet diameter | mm | Φ150 |
| Diesel engine model | Weichai | |
| Electrical engineering power | KW | 82 |
| Rotate speed | r/min | 2200 |
| Circuit type | Open circuit | |
| Pumping system pressure | Mpa | 32 |
| Mixing system pressure | Mpa | 10 |
| Max mixing speed | r/min | 25 |
| Capacity of oil tank | L | 370 |
| The biggest transportation is away from vertically(/Level) | m | 120/500 |
| Max. aggregate diameter | mm | Scree:40 |
| Inside diameter of delivering pipe | mm | Φ125 |
| Dimensions: length×width×height | mm | 4500×1850×1700 |
| Total weight | kg | 4500 |
Diesel concrete pumps are much more convenient than electric ones. They got customers’ favor after they are launched into the market. Every year, AIMIX Group sold more diesel concrete pumps than electric ones. The following is a feedback video of our ABT40C diesel concrete pump working in Papua, Indonesia. You can see more video of AIMIX products exported to Indonesia on Youtube.
As an experienced concrete pump manufacturer and exporter, AIMIX has exported our products to many countries all over the world. To serve customers faster and better, we have set branch office in Indonesia. Customers can get faster responses and better service from us. Our products such as dry mortar plant, self loading mixer, diesel concrete mixer pump, diesel concrete pumps have been sold to many islands in Indonesia.
AIMIX mainly provides ABT40C, ABT60C, ABT80C, ABT90C diesel concrete pumps for customers to choose from. If you are interested in any type of our diesel concrete pumps, welcome to contact us now! Just leave your message in the form below, we will reply in 24 hours!
