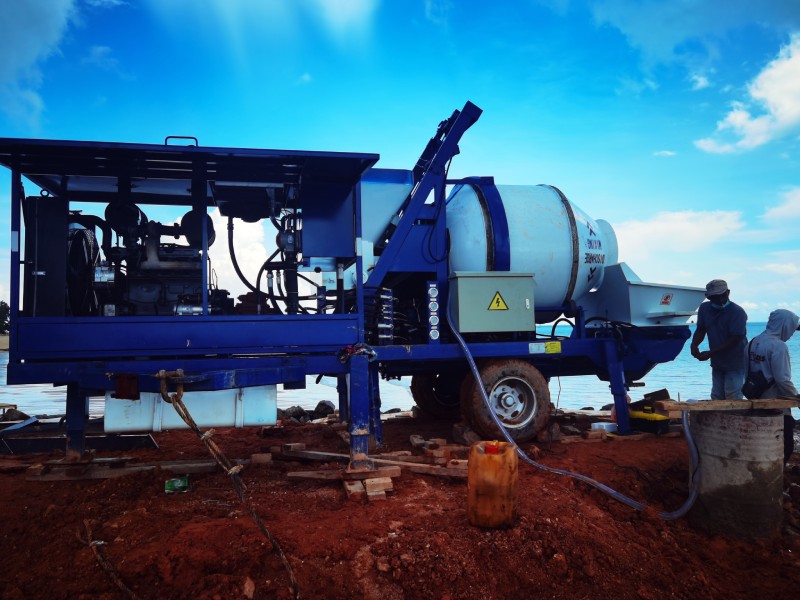

Good news comes in August 2021! one set of AIMX ABJZ40C diesel concrete mixer pump arrived the construction site of our Indonesian customer in Bangka Indonesia. After the installation and test run, the mixer pump was put into use. Our customer spoke highly of our concrete mixer pump. The following are some pictures taken on the construction site.

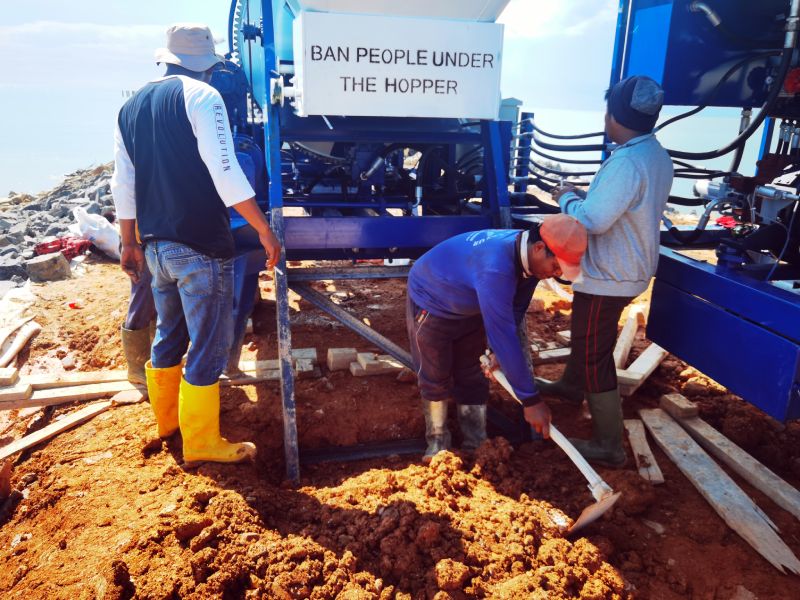

The following video was took on the construction site. From this video, we can see the concrete mixer pump installation, pipeline installation, test process, engineer guided operation.
After the above steps, the concrete mixer pump started working. We can see it mix and pump concrete smoothly. After the concrete mixer pump finished working, it was cleaned carefully.
| Model | ABJZ40C-10-82R |
|---|---|
| Price Range | $20,000-$40,000 |
| Max. theo. concrete output | 40m3/h |
| Max. concrete pumping pressure(H./L.) | 10Mpa |
| Distribution Valve Type | S |
| Concrete Cylinder Diameter×Stroke | Φ180/1000mm |
| Hopper Capacity×Feeding Height | 400×1200(L×mm) |
| Outlet Diameter | Φ150mm |
| Electrical Engineering Power | 82KW |
| Rotate Speed | 2200r/min |
| Circuit Type | Open Circuit |
| Pumping System Pressure | 32Mpa |
| Mixing System Pressure | 10Mpa |
| Max Mixing Spped | 20r/min |
| Capacity of Oil Tank | 350L |
| The biggest transportation is away from vertically(/Level) | 150m/600m |
| Max. Aggregate Diameter | Φ125mm |
| Dimensions: length×width×height | 6000mm×2350mm×3150mm |
| Total Weight | 6000Kg |
AIMIX ABJZ40C diesel concrete mixer pump is a hot type among our products. You can see how popular it is from our cases page. With the function of concrete mixing and pumping, concrete mixer pump is really a great design. It makes concrete mixing and pumping easier. A concrete mixer pump helps to reduce human labor and increase working efficiency.
AIMIX mainly provides ABJZ30C, ABJZ40C diesel concrete mixer pumps, and ABJZ30D, ABJZ40D electric concrete mixer pumps for customers to choose. Besides our concrete mixer pumps, ABT series diesel concrete pumps are also very popular among our customers. If you are interested in any type of them, welcome to contact us now!
