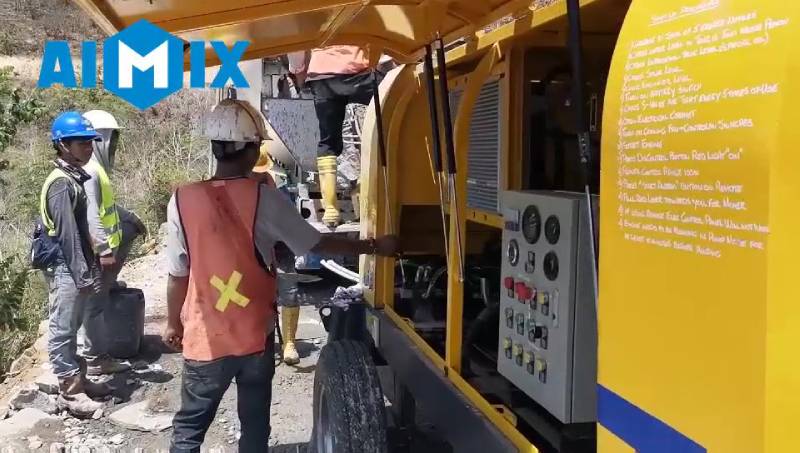

After One set Aimix diesel concrete trailer pump sent to Lombok Indonesia, our customer there sent us some videos took on the concrete pump working site.

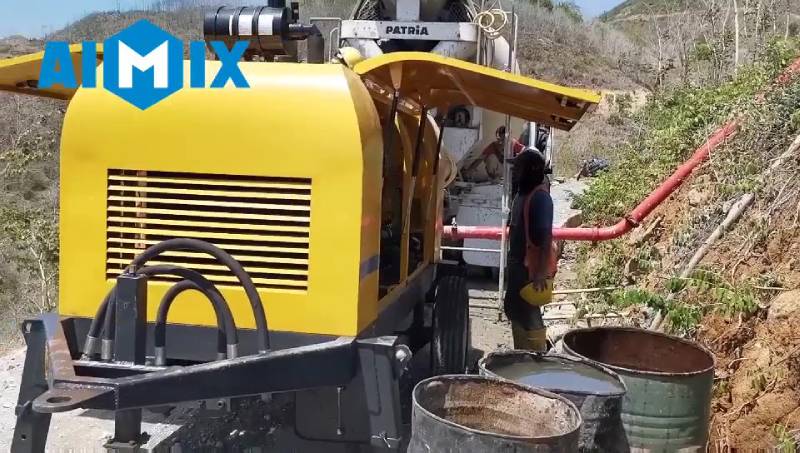

From the video, we can see that our customer uses the concrete trailer pump together with a concrete mixer truck. The two pieces of equipment cooperate together to accomplish the task of concrete mixing and pumping.

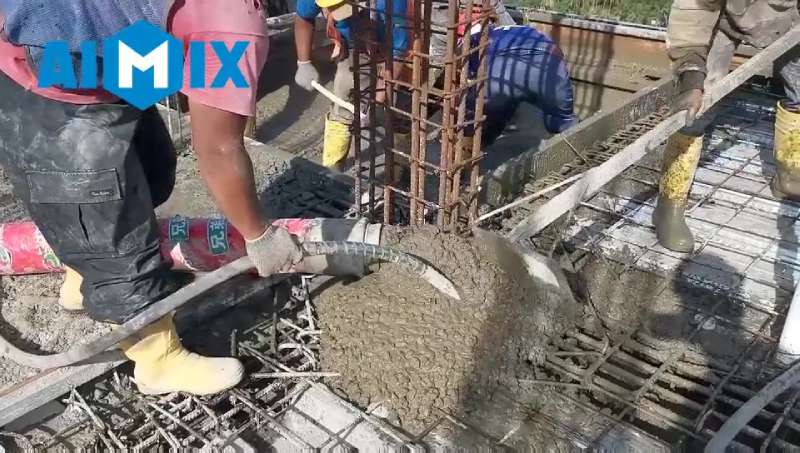

Also, we can see that the concrete is conveyed for building construction. through the pipe connected to the concrete pump, concrete mixture is transported to high buildings. We can say that the concrete pump is really a clever design, it helps to reduce human labor and increase working efficiency.
| Items | Units | ABT60C |
|---|---|---|
| Max. theo. concrete output(H./L.) | m3/h | 45/87 |
| Max. concrete pumping pressure(H./L.) | Mpa | 13/7 |
| Distribution valve type | S | |
| Concrete cylinder diameter×stroke | mm | Φ200/1650 |
| Hopper capactiy × feeding height | L×mm | 800×1400 |
| Outlet diameter | mm | Φ180 |
| Diesel engine model | Weichai | |
| Electrical engineering power | KW | 129 |
| Rotate speed | r/min | 2200 |
| Circuit type | Open circuit | |
| Pumping system pressure | Mpa | 32 |
| Mixing system pressure | Mpa | 10 |
| Max mixing speed | r/min | 25 |
| Capacity of oil tank | L | 560 |
| The biggest transportation is away from vertically(/Level) | m | 180/1000 |
| Max. aggregate diameter | mm | Scree:40 |
| Inside diameter of delivering pipe | mm | Φ125 |
| Dimensions: length×width×height | mm | 5800×2000×1750 |
| Total weight | kg | 6500 |
Besides ABT60C diesel concrete pump, Aimix also provides ABT40C, ABT80C diesel concrete pumps for customers to choose. Customers can choose either model according to the real demand or ask our sales and engineers for advice.
In this case, our customer chooses a diesel concrete pump and concrete mixer truck together to accomplish the task of concrete mixing and pumping. There is another solution for this case – choosing a concrete mixer pump. A concrete mixer pump and both mixing the concrete and conveying concrete, which is also a good choice. For more info of our concrete mixer pumps, you can visit this page: https://aimix-group.id/concrete-mixer-with-pump-for-sale/.
Aimix has both diesel concrete pumps and diesel concrete mixer pumps for customers to choose from, welcome to consult.
