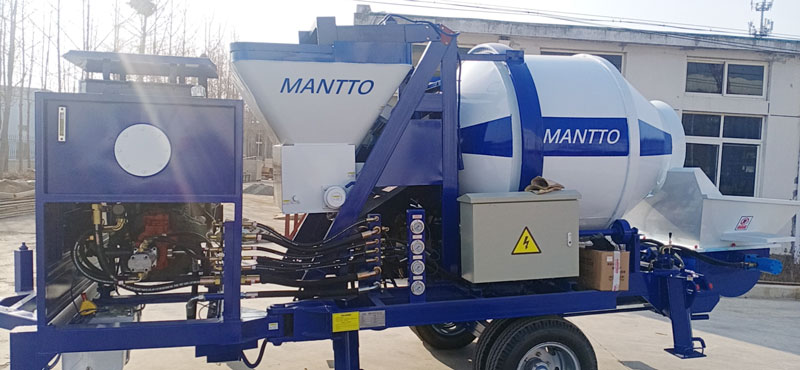

In March 2021, our customer from East Timor sent us some feedback video of our ABJZ40C diesel concrete mixer pump. It was the test run video of this mixer pump. After making a test run, our customer is satisfied with this mixer pump and put it into use.
The following is the test run video of our ABJZ40C cement mixer pump.
Diesel concrete mixer pump is a hot product that combines the function of concrete mixing and conveying all in one. It is a popular product in our company and the construction machinery market. Since it adopts a diesel engine, it can be used in areas both lacking of and sufficient electricity supply. That makes it favored by most customers.
| Model | ABJZ40C-10-82R |
|---|---|
| Price Range | $20,000-$40,000 |
| Max. theo. concrete output | 40m3/h |
| Max. concrete pumping pressure(H./L.) | 10Mpa |
| Distribution Valve Type | S |
| Concrete Cylinder Diameter×Stroke | Φ180/1000mm |
| Hopper Capacity×Feeding Height | 400×1200(L×mm) |
| Outlet Diameter | Φ150mm |
| Electrical Engineering Power | 82KW |
| Rotate Speed | 2200r/min |
| Circuit Type | Open Circuit |
| Pumping System Pressure | 32Mpa |
| Mixing System Pressure | 10Mpa |
| Max Mixing Spped | 20r/min |
| Capacity of Oil Tank | 350L |
| The biggest transportation is away from vertically(/Level) | 150m/600m |
| Max. Aggregate Diameter | Φ125mm |
| Dimensions: length×width×height | 6000mm×2350mm×3150mm |
| Total Weight | 6000Kg |

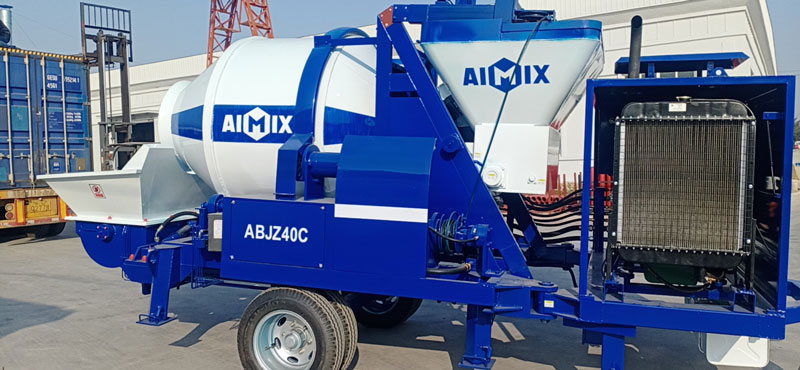

Among our diesel concrete mixer pumps, ABJZ30C and ABJZ40C are the hottest. Many customers choose them. We have exported many of them to countries such as the Philippines, Pakistan, Uzbekistan, Kazakhstan, Congo, Indonesia, Sri Lanka, Vietnam etc. Customers speak highly of them after they use these concrete mixer pumps.
Our concrete mixer pumps can adopt a drum concrete mixer or twin shaft compulsory concrete mixer as the main mixer, customers can choose either type according to the real demand. Welcome to contact us now! Leave your message in the form below, we will reply in 24 hours!
